SFP 0~50Mbps MM Transceiver Module

0.0/5 rating (0 votes)

Description

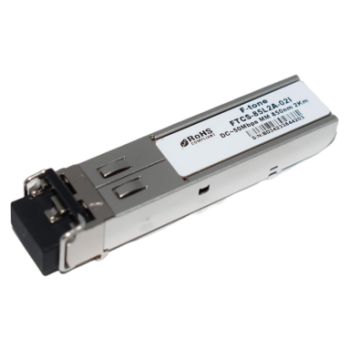

SFP 0~50Mbps MM Transceiver Module

Product Description
F-tone Networks's FTCS-85L2A-02I series of transceiver modules are the perfect solution for ultra-low speed communication networks.These transceiver modules support data rates up to 50Mbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA).These transceiver modules provides the system designer with products to RS232/RS485/RS422 receptacle fiber transmission.

Product Features
● VCSEL Laser Diode Transmitter
● Up to 1 Km on 62.5/125μm MMF
● 3.3Vpower supply
● LC duplex optical interface
● LVTTLInputs /Outputs and LVTTL signal detect
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

Application
● RS232/RS485/RS422 receptacle fiber transmission
● Fiber System

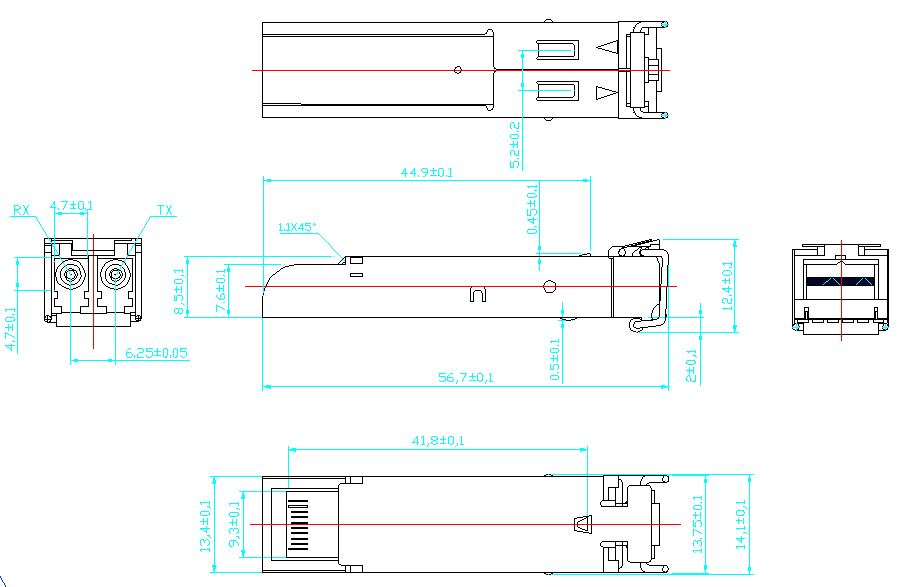

Module Outline Drawing（Units in mm)

Order Information

Type	Fiber Type	Wavelength(nm)	Fiber Length(Km)
FTCS-85L2A-02I	MM	850(VCSEL)	1

北亿纤通 | F-tone Networks

企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为SFP系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
