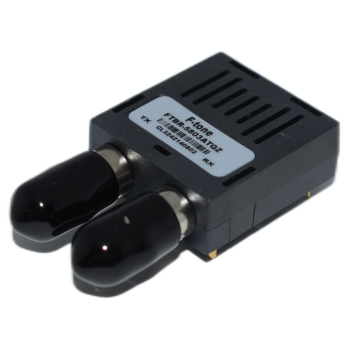

兼容安华高AFBR-5803ATQZ

0.0/5 rating (0 votes)

Description

兼容安华高AFBR-5803ATQZ

Product Features
● Uncooled laser diode with MQW structure
● Reach 2 km Transmission Distance
● Duplex Single Mode Transceiver 1x9 Footprint
● SC, FC or ST Optical Interface are Optional
● Single +3.3V Power Supply
● PECL/LVPECL Differential Inputs and Outputs
● PECL/LVPECL Signal Detection Output alternative
● Fast Ethernet and ITU G.957 Compliant
● Compliant RoHS and lead free
● Complies with Telcordia GR-468-CORE
● Operating case temperature:
Standard : 0 to +70℃
Extend : -20 to +85℃
Industrial : -40 to +85℃

Product Applications
● ATM
● SONET/SDH
● Fast Ethernet
● Switches
● Routers
● Hubs

Performance Specifications
Absolute Maximum Ratings

Parameter	Symbol		Min	Max	Unit
Storage Temperature	Tst		-40	+85	℃
Operating Temperature	T_O	FTBR-5803Z/FTBR-5803TZ	0	+70	℃
		FTBR-5803AZ/FTBR-5803ATZ	-20	+85	℃
		FTBR-5803AQZ/FTBR-5803ATQZ	-40	+85	℃
Input Voltage	-		GND	VCC	V
Power Supply Voltage	VCC-VEE		0	+6	V

Recommended Operating Conditions

Parameter	Symbol		Min	Typ	Max	Unit
Storage Temperature	Tst		-40	-	+85	℃
Operating Case Temperature	TC	FTBR-5803Z/FTBR-5803TZ	0	-	+70	℃
		FTBR-5803AZ/FTBR-5803ATZ	-20	-	+85	℃
		FTBR-5803AQZ/FTBR-5803ATQZ	-40	-	+85	℃
Power Supply Voltage	VCC3.3		3.1	3.3	3.5	V
Data Rate	DR		-	155	200	Mbps

Optical Specification

Transmitter
Parameter		Symbol	Min	Typ	Max	Unit	Note
Center Wavelength	1310 FP	lC	1261	1310	1360	nm	FTBR-5803xx
Center Wavelength	1550 FP	lC	1500	1550	1600	nm	FTBR-5803xx-1550nm
Spectral Width		Dl	-	-	4	nm	-
Average Optical Output Power		Po	-20	-	-14	dBm	62.5/125UM MMF
Average Optical Output Power		Po	-22.5		-14	dBm	50/125UM MMF
Extinction Ratio		Ext	10	-	-	dB	-
Optical Rise Time(20%-80%)		Tr	-	-	3	ns	-
Optical Fall Time(20%-80%)		Tf	-	-	3	ns	-
Output Eye Diagram		Compliant with ITU-T.G957
Receiver
Parameter		Symbol	Min	Typ	Max	Unit	Note
Operate Wavelength		-	1261	-	1620	nm	-
Sensitivity		Pr	-	-	-32	dBm	1
Saturation		Ps	-3	-	-	dBm	1
Signal Detect Assert Level		-	-45	-	-	dBm	Alarm: Low-level
Signal Detect De-assert Level		-	-	-	-33	dBm	Alarm: Low-level
SD Hysteresis		-	0.5	-	5	dB	-

Note: 1. Minimum Sensitivity and saturation levels for a 2 ²³ -1 PRBS test pattern @155Mbps.

Electrical Specification

Transmitter
Parameter	Symbol	Min	Typ	Max	Unit	Note
Power Supply Current	ICC	-	70	120	mA	2
Input Differential Impedance	ZIN	90	100	110	Ω	-
Differential Input Voltage	VIH- VIL	300	-	2000	mV	-
Receiver
Parameter	Symbol	Min	Typ	Max	Unit	Note
Power Supply Current	ICC	-	60	80	mA	2
Data Output Voltage-Low	VOL-VCC	-2.0	-	- 1.58	V	3
Data Output Voltage-High	VOH-VCC	- 1.1	-	-0.74	V	3
Signal Detect Output Voltage-Low	VSDL-VCC	-2.0	-	- 1.58	V	PECL
Signal Detect Output Voltage-High	VSDH-VCC	- 1.1	-	-0.74	V	PECL

Note: 2. The current excludes the output load current.
3. Terminated with 50Ohm to Vcc-2V.

Pin Definitions
PIN Diagram

PIN Description

PIN	Symbol	Note
1	GNDR	Directly connect this pin to receiver signal ground plane.
2	RD+	See recommended circuit schematic.
3	RD-	See recommended circuit schematic.
4	SD	Active high on this indicates a receiver optical signal.
5	VCCR	+3.3V DC power for the receiver section.
6	VCCT	+3.3V DC power for the transmitter section.
7	TD-	See recommended circuit schematic.
8	TD+	See recommended circuit schematic.
9	GNDT	Directly connect this pin to transmitter signal ground plane.

Recommended Circuit 1Recommended Circuit 2

Note: The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals. The power supply filtering is required for good EMI performance.Use short tracks from the inductors L1/L2 to the module Rx VCC/Tx VCC. A GND plane under the module is required for good EMI and sensitivity performance

Package Diagram

Order Information

FTBR-5803Z	兼容AVAGO(安华高)AFBR-5803Z，国产替换兼容AVAGO(安华高)AFBR-5803Z
FTBR-5803TZ	兼容AVAGO(安华高)AFBR-5803TZ，国产替换兼容AVAGO(安华高)AFBR-5803TZ
FTBR-5803AZ	兼容AVAGO(安华高)AFBR-5803AZ，国产替换兼容AVAGO(安华高)AFBR-5803AZ
FTBR-5803ATZ	兼容AVAGO(安华高)AFBR-5803ATZ，国产替换兼容AVAGO(安华高)AFBR-5803ATZ
FTBR-5803AQZ	兼容AVAGO(安华高)AFBR-5803AQZ，国产替换兼容AVAGO(安华高)AFBR-5803AQZ
FTBR-5803ATQZ	兼容AVAGO(安华高)AFBR-5803ATQZ，国产替换兼容AVAGO(安华高)AFBR-5803ATQZ

北亿纤通 | F-tone Networks

企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为1*9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
